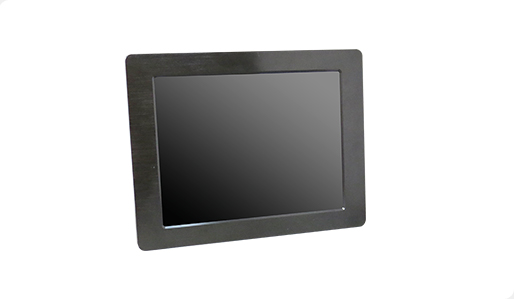

Drivers 10.4" TFT
Monitor

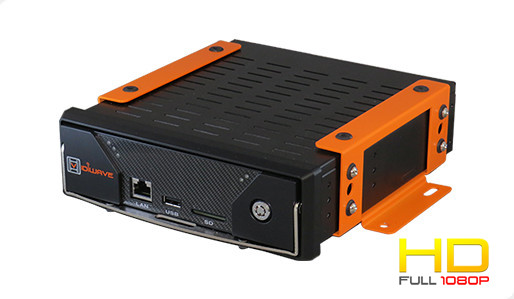

Vidistor Compact-HD
Full Hybrid Mobile DVR/NVR with GPS Tracking
Le châssis ultra compact monocoque rend ce produit facile à installer sur tableau de bord dans la plupart des véhicules. Il se caractérise par un suivi GPS avec vidéo en direct live, une protection contre les chocs incorporée et un capteur de forces gravitationnelles. Jusqu’à 25IPS par caméra. Ce produit robuste bien conçu est à l’avant-garde du design ergonomique de par sa taille réduite. Il incorpore l’OS Linux et jusqu’à 2To de stockage interne.
Key Features
- Embedded Linux OS for reliability
- H.264 Compression for analogue cameras
- Compact 1DIN size with removable DVR dock design
- Dual Stream - Optimising network transfer speeds via WLAN and 3G
- User Friendly GUI - Flexible, Easy to use
- Advanced Remote Management Software integrates all video and CCTV diagnostics
- S.M.A.R.T: Self-Monitoring Analysis and Reporting Technology - via RMS
- Mobile Device Support: iPhone, Android
- Spot monitor output for in-vehicle display
- Audio recording: to support video evidence
- Built-in Vibration Protection
- Built-in Automotive Grade 12-24V PSU
- Built-in support for GPS tracking with video image live and playback
- Built in G-sensors via GPS for embedded playback with video

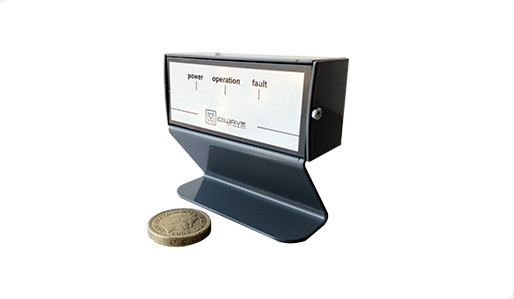

Drivers LED System Health Indicator
Le voyant défaut à LED Vidi-Safe est conçu pour fournir une confirmation visuelle claire au chauffeur du bon état de fonctionnement du système complet de vidéosurveillance, avant qu’il prenne la route.
C’est une alternative low-cost à notre package de diag à distance utilisant le WIMS de Vidiwave (Module de Gestion sans fil) par la 3G ou le WLAN.
Ce module simple et compact permet au conducteur une tranquillité d’esprit sur le bon fonctionnement de la vidéosurveillance, et donc sa sécurité et celle de ses passagers.
En cas d’erreur du système, un voyant défaut s’allume pour alerter le conducteur que l’intervention du technicien est nécessaire : il va consulter le journal des erreurs qui indiquera précisément le défaut en détails pour permettre une correction rapide
Key Features
- Provides an Instant, simple visual health diagnostics
- Reports the health of all the complete CCTV system
- Checks CCTV systems - Cameras / HDD's / NVR health and DC Power.
- Compact Design - Dashboard and A-pillar mountable
- Rugged construction

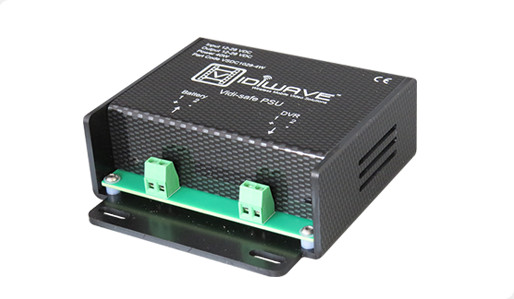

VidiSafe Autospike
Automotive power distribution unit for use with Vidistor Compact DVR
Cette technologie unique se caractérise par un contrôle permanent des pics de tension, une protection de mise à la terre plus et moins. Cet appareil alimente et protège les caméras, les modules 3G et WLAN et les écrans de contrôle de la vidéosurveillance. Cet appareil répond aux normes EN-55022-06-A & FCC Part 15-B
Key Features
- PSU/PDU protection for 12VDC vehicles
- Permanent spike monitoring technology.
- Positive and Negative Earth fault protection.
- Thermal fuse, self-healing technology.
- Full reverse polarity protection.
- Easy-wire installation system.
- Built in cable protection / tie management.
- 12VDC 4 Amp output for ancillary devices.
- Powers, protects and isolates CCTV cameras.
- Powers, protects and isolates WLAN / 3G modules.
- Powers, protects and isolates CCTV monitors.
- EN-55022-06-A & FCC Part 15-B compliant.
CAM Switch PoE
Key Features
- 802.3af POE / 802.3at POE Plus compatible outputs
- Converts a wide input voltage range to POE levels
- Up to 80 watt power budget
- Auto-configuring 10/100 Ethernet switch
- 4+1 and 8+2 channel models
- Rugged enclosure with adjustable mounting brackets
WIMS Client Module - Automotive
3G/WLAN Wireless Router with a custom embedded Linux OS
Key Features
- Zero Config
- Ultra Secure P2P VPN Technology protects 3G / CDMA / WLAN and LAN to (AES-256) Mil-Spec standards
- Built in Embeded Linux OS for robustness and reliability
- 4GB Solid state compact flash memory
- Supports fixed IP multi-port addressing via DHCP sim cards
- PUSH Diagnostics / Alerts and Exception Reporting direct to your Maintenance Provider
- Embedded Linux Remote Agent syncs information to a Headend Server to give instant Fault Visability and Reporting via 3G and WLAN
- Supports Full Video Management including Playback / Preview and Backup via GPRS / 3G and WLAN
- Integrated Video Backup to a Secure Web-Based Video Vault with Video Sharing Feature for secure CCTV Evidence Distribution
WLAN / 3G / GPS Roof Antenna
Screw mount GPS/GSM/Wi-Fi combination antenna
Key Features
- Single antenna provides cellular / WLAN + GPS for tracking
- IP67 rated
- High impact ABS plastic for long-life / durability
- Low profile - To reduce gauge increase considerations
- Vehicle wash proof
- Fully isolated from chasis earth faults
- RoHS Compliant

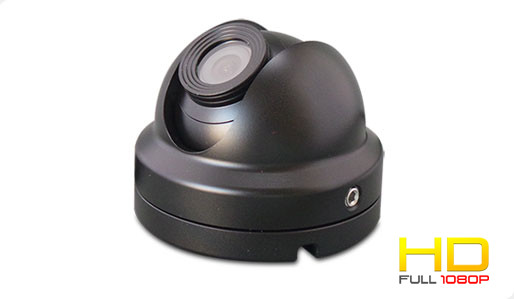

1080p AHD Dome Camera
Key Features
- 1/3” 2.1 Megapixel Sony HD Image Sensor
- Zero motion blur on moving objects
- 2DNR / DNR Level (0~100) Adjustment / SMART NR
- Ultra low light 0.02Lux (Sens-up x30)
- 1080P and 720P HD resolutions available
- IP66 snap lock quick fit connector system
- Vandal resistant design
- Waterproof IP66 housing

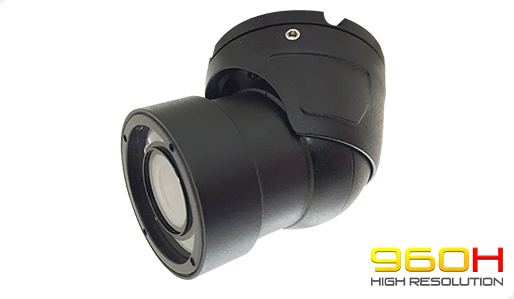

Internal Camera
Ultra-small with built in IR Lighting

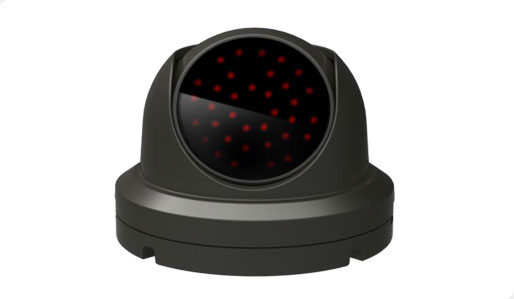

IRD36 Infrared LED Illuminator
The IRD36 is an IP66 waterproof IR LED light for internal and external use on vehicles and rolling stock. It has a wide beam angle to minimise image hotspots and delivers even lighting to the target scene areas.

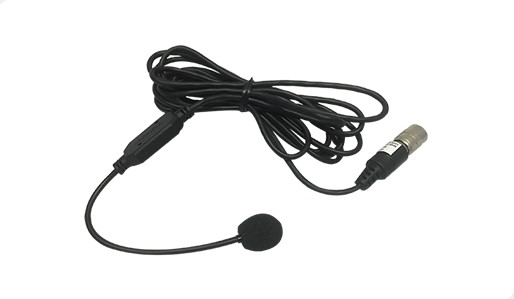

DVR Microphone
With pre-amplifier
Key Features
- Compact size – Ideal for discrete / non intrusive installation
- Built-in powered Pre-amplifier
- Low-voltage operation
- Pre-wired to utilise existing camera 12VDC power feeds, Ideal for system upgrades
- Adaptive Noise Gate Threshold (to reduce background noise)
- Adaptive Compression Level to Optimise Sound Quality
- Auto limiting feature – Prevents ADC overload
- Adjustable release time
- Low noise and Distortion
- 20kHz Bandwidth (+/- 1 dB)
- Optional IP65 rated version available on request

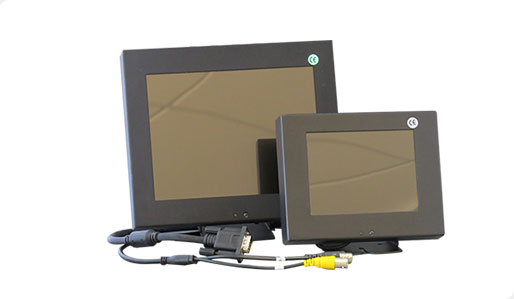

Drivers TFT 5/8 Inch Monitors
